LCD Screen test

1. Restart The Dejavoo terminal.

2. When the terminal comes up and says System Initializing press the red x repeatedly until it opens the Program Manager

3. Press 0
4. **If Prompted enter password 0106 and Press OK

5. Press 5 for Test Utility



6. Type 1 (the option for LCD) and press OK



7. The test will start.
   It will display a colorful background that changes every time you press a button
   Keep pressing buttons to change the screen until you see the touch Test

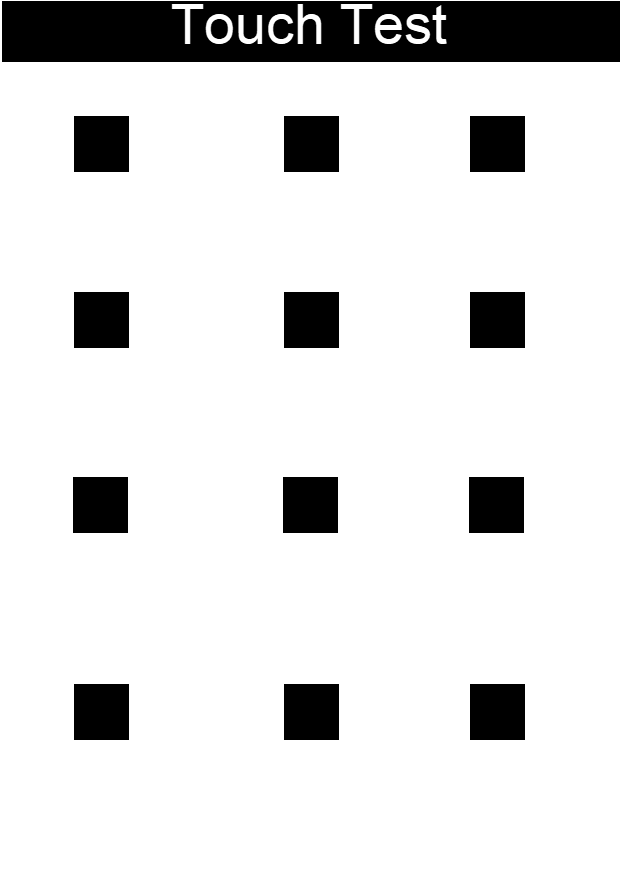

8. Tap each black square on the Touch Test. They will turn white when pressed and show a dot where you touched




9. Once all of the squares have been touched the screen will display Touch Pad Test OK
10. Hit the Rex X key 3x to exit back to the Program manager
11. Press the Green enter button to launch the app
