Card read test

1. Restart The Dejavoo terminal.

2. When the terminal comes up and says System Initializing press the red x repeatedly until it opens the Program Manager

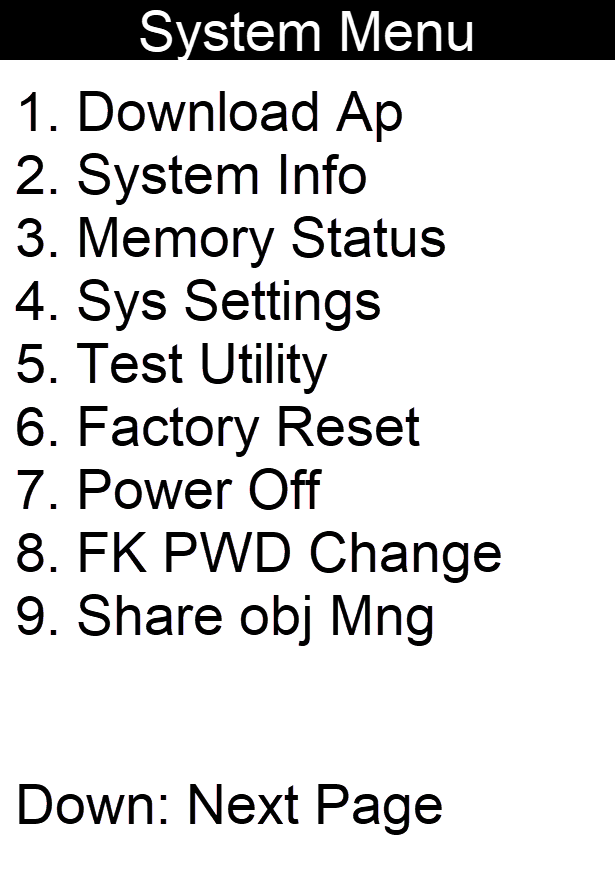

3. Press 0
4. **If Prompted enter password 0106 and Press OK

5. Press 5 for Test Utility



6. Type 4 (the option for Smart Card) and press OK



7. The test will start.
8. Insert a card
9. Hit 1

If the Card reader fails all of the tests the Device will need to be replaced. Perform an RMA
