Dejavoo: Z-Series Hardware
VEGA 3000 Hardware
Last Updated:What's in this article?

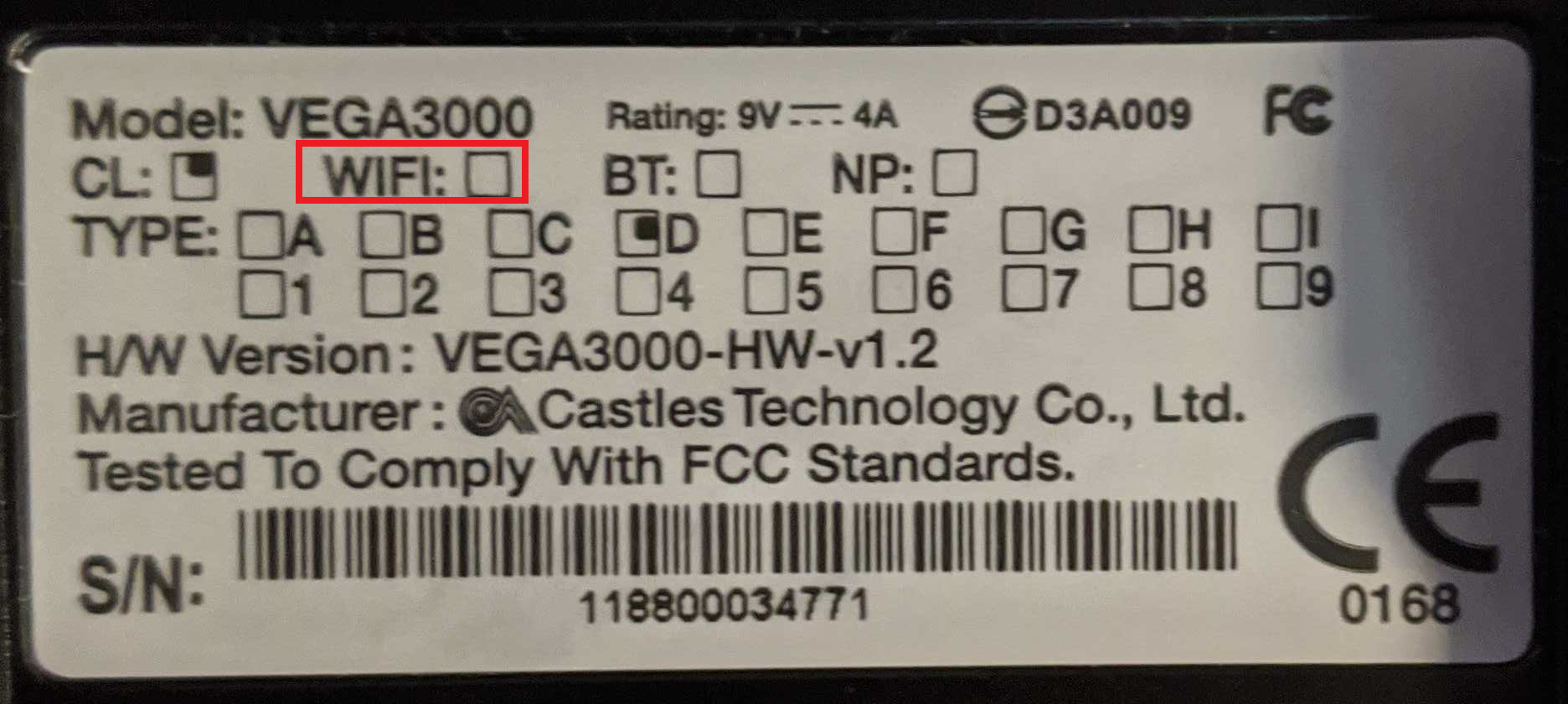

All of the Dejavoo terminals listed here have the model number of Vega 3000
Please have the merchant look around the screen to find the Version you are working with.
If the merchant is unable to locate the type, you can usually just go off of Touch vs Non-touch screen models
Z Series | The models in this line of products includes: Z3, Z6, Z8, Z9, Z11 You can identify if your terminal model is part of the V Series by the following:
|
- Z8 (WiFi, Ethernet, Dial)
- Z9 (3G, WiFi)
- Z11 (WiFi, Ethernet, Dial)
The Dejavoo Z8 Dual Comm contactless terminal is a feature-rich countertop terminal for businesses that accept credit cards. The terminal includes built-in capability to process both EMV chip cards and contactless (NFC) payments, such as MasterCard PayPass and Visa payWave.
The machine also allows acceptance of traditional magnetic stripe credit cards, and both PIN-based and signature-based debit cards. An integrated PIN pad fast and secure customer PIN entry. A built-in printer includes graphics capabilities, allowing for tailored receipts.
Features
The Dejavoo Z8 countertop credit card machine boasts several features that make it a convenient and flexible choice for your business. The terminal offers multiple connection options, a backlit LCD screen for high visibility viewing no matter the lighting conditions, a keypad that includes function keys, and a built-in printer. Additionally, the small size makes the terminal convenient for environments that don’t have a lot of space for a bulky credit card machine.
Locked Terminals
Wondering how to check if a Dejavoo Z8 machine is locked? There’s a simple way to find out:
1. Press OK
2. Press Ok on Utility
3. Enter password of 1234If terminal accepts password it’s unlocked.
Note that if your terminal is locked but you have the new password, some processors will still be able to reprogram the terminal for you.
Specifications
Just looking for quick details? Here are the specs for the Dejavoo Z8.
Connectivity
The Dejavoo Z8 countertop credit card machine offers a choice of connections, including dial-up, Ethernet, and Wifi.
The Z8 is also Bluetooth-enabled and includes serial and USB ports.The terminal will have a sticker on the back that indicates the comm options enabled when the device was originally setup. If you need to enable WiFi you need to call Dejavoo.
Display
A 2.4" backlit LCD color screen provides a bright, easy-to-read screen for businesses and customers.
Keypad
The Dejavoo Z8 terminal features 15 standard keys and 6 function keys for quick entry.Size
Weighing 375 grams, the Z8 is light enough for prolonged handling and is designed for portability. The terminal is 190mm L x 78mm W x 78mm H.Memory
The Dejavoo Z8 credit card machine includes memory to perform essential functions. The terminal boasts 192MB of total memory, broken down as 128MB of flash memory and 64MB of DDR RAM. The terminal has the ability to hold 30,000+ transactions in a single batch.Printer
The build-in graphical printer on the Dejavoo Z8 prints at 100mm per second, ensuring that printing receipts won’t hold up customers and create longer lines.Compatible Credit Card Processors
The Dejavoo Z8 is not a proprietary terminal, meaning that it’s compatible with many different processors. Additionally, Z8s can be reprogrammed by some processors. If you already use a Z8 and are considering switching processors, be sure to check with the new processor about reprogramming your terminal before you cancel your existing service.
Pricing
Exact costs for the Z8 will vary depending on where you purchase the machine. The Z8 will typically cost a few hundred dollars to purchase outright.
At CardFellow, we recommend purchasing equipment from your processor, as you’re less likely to run into compatibility issues that way. When you choose a processor through CardFellow, you’ll also have the option to purchase equipment at or close to cost.
FEATURES
- Dial-Up
- Dual/Comm
- NO Wireless
- Wifi
- Contactless
- EMV/ Smartcard
- Built in Contactless Reader
- NFC Capable
- Internal PIN Pad
- Store & Forward
- Multiple merchant support
- Multi application support
- NOT Encrypted
Manufactured by Dejavoo, the Z9 is a contactless terminal with 3G or Wifi connectivity for portability. The Z9 includes a built-in contactless reader for accepting newer contactless payment technology.
The Z9 is compatible with Visa payWave, MasterCard PayPass, and American Express & JCB J/Speedy. A touchscreen LCD and built-in printer enhance the look and function of the Z9.
Security
The Z9 contactless terminal is PCI PTS certified and EMV 4.x Level 1 and Level 2 certified for security.
Features
The Z9 contactless-capable credit card terminal boasts the following features for businesses:
Connectivity and Communication
The Z9 offers the choice of using either 3G or Wifi connections.Display
The Z9 features a 3.5” full color LCD touchscreen.Keypad
In addition to the touch-sensitive screen, the Z9 includes a 15-button backlit keypad with raised markings on action keys such as the OK button.Size
The dimensions of the Z9 contactless terminal are as follows:
Handset: 160mm L x 78mm W x 67mm H, weighing 335 grams
Base: 137.6mm L x 81mm W x 48.8mm H, weighing 140 gramsMemory
192MB of total memory (including 128MB Ram and 64MB DDR RAM) are included. A micro SD slot allows for additional removable storage.Printer
FEATURES
The Z9 printer operates at 100mm/second for quick receipt printing.- Dial-Up
- Dual/Comm
- Wireless
- Wifi
- Contactless
- EMV/ Smartcard
- Built in Contactless Reader
- NFC Capable
- Internal PIN Pad
- Store & Forward
- Multiple merchant support
- Multi application support
- NOT Encrypted
Dejavoo’s Z11 touchscreen countertop terminal boasts the ability to accept traditional magnetic stripe credit cards and new EMV chip cards and NFC (contactless) payment options.
Built-in EMV and contactless readers eliminate the need for additional equipment to process those payment types. Customers can pay with Visa payWave, MasterCard PayPass, and American Express/JCB J/Speedy, as the Z11 terminal is certified for those options. The built-in PIN pad also allows easy PIN entry for debit transactions. The bright, large LCD display is ideal for easy viewing in a variety of lighting conditions, ensuring businesses and customers can clearly read important information.
The Z11 is designed for portability and has a base unit and separate handset.
Security
The Dejavoo Z11 is both PCI PTS certified and EMV Level 1 and Level 2 certified.
Features
The Dejavoo Z11 is a versatile countertop terminal that offers multiple connection and communication methods, a bright touchscreen LCD screen, built-in PIN pad and integrated printer, and convenient countertop size for compact spaces.
Connectivity and Communication
With Wifi, Bluetooth, Ethernet, and dial-up options, the Dejavoo Z11 is suitable for a range of businesses no matter what connections are needed. The Z11 also has RS232 and USB ports for attaching optional peripherals.Touch Screen Display
The Dejavoo Z11 terminal features a generous 3.5” full color 320×480 pixel LCD screen. The touch screen display also features signature capture that allows customers to sign electronically on the terminal’s screen.Keypad
Most functions are completed on the Z11 using the large touchscreen interface. However, for PIN entry or other functions where physical dedicated keys are preferred, the terminal has a built-in 15 button keypad.Size
The Dejavoo Z11 is a small footprint terminal at 190mm L x 78mm W x 78mm H and weighing 350 grams.Memory
The Dejavoo Z11 is equipped with 128MB of flash memory and 64MB of DDR RAM to handle a range of business payment functions.Printer
FEATURES
An integrated printer with graphical capabilities eliminate the need for additional receipt-printing equipment. The Z11 printer boasts speeds of 100mm per second for quick printing.- Dial-Up
- Dual/Comm
- NO Wireless
- Wifi
- Contactless
- EMV/ Smartcard
- Built in Contactless Reader
- NFC Capable
- Internal PIN Pad
- Store & Forward
- Multiple merchant support
- Multi application support
- NOT Encrypted
Paper sizes
Terminal | Paper Size |
---|---|
Dejavoo Z8 | 2-1/4" x 85' Thermal |
Dejavoo V8 | 2.25" x 70' Thermal |
DejavooV5 | 2 1/4" x 50'Thermal |
Dejavoo Z9 | 2-1/4" x 70'Thermal |
Dejavoo v9 | 2-1/4" x 70'Thermal |
Dejavoo m8 | 2-1/4" x 70'Thermal |
Dejavoo m5 | 2-1/4" x 70'Thermal |
Dejavoo m3 | 2-1/4" x 70'Thermal |
Dejavoo c5 | 2-1/4" x 34'Thermal |
Dejavoo x5 | 2-1/4" x 110'Thermal |
Dejavoo Z11 | 2 1/4in x 85ftThermal |
